SDT has designed and developed complete line of multistage fracking equipment and technologies. The SDT’s multi-stage completion system provides high intensity stimulation in unconventional tight oil and gas formations. An advanced seat and port activation design along with a proprietary anti-erosion coating enables smaller ball and seat increments to be used for increased stage counts. Once the stimulation operation is complete, the well can be immediately flowed back and put on production. SDT’s systems provide operators with an efficient and costeffective method
to complete their wells.
The SDT’s system is modular regarding tool placement and can be combined with other SDT’s tools and systems, enabling customized stimulation programs.

Ball-actuated, hydraulically activated injection/production ports (dissolvable balls technology available)
Ports provide unrestricted flow for stimulation Drillable Closeable (DC) version available water or gas shutoff, flow control, re-fracturing, production testing
Once casing reaches the target depth, the ceramic barrier shatters to fine pieces by applying hydraulic pressure from surface and flow path created for the cement job, establishing the standard ID of casing pipe

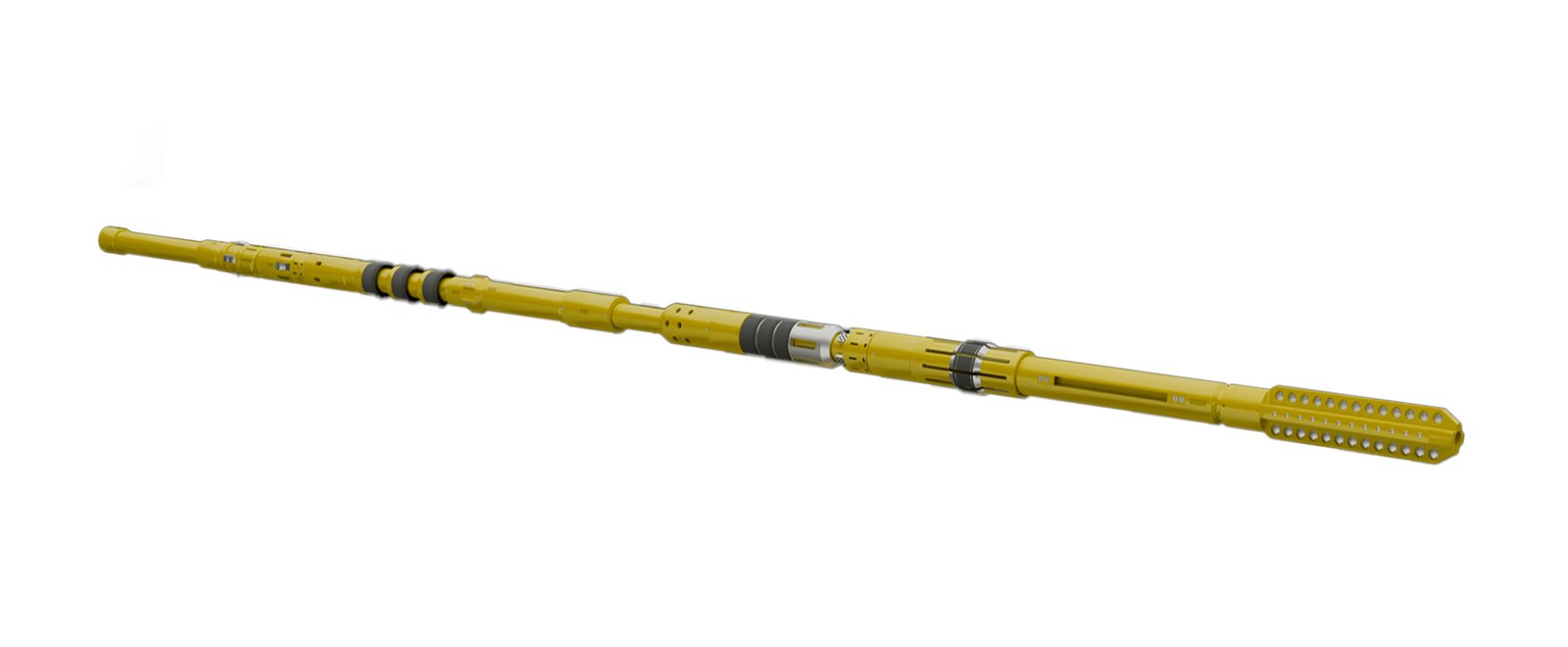

High performance, hydraulically and mechanically set stage separation packers with premium seal technology
Reliable high-pressure zonal isolation during stimulation and throughout the life of the well
Short length, minimum outside diameter and anti-preset features improve ease of installation

Multistage Fracking Technical Data Sheet
